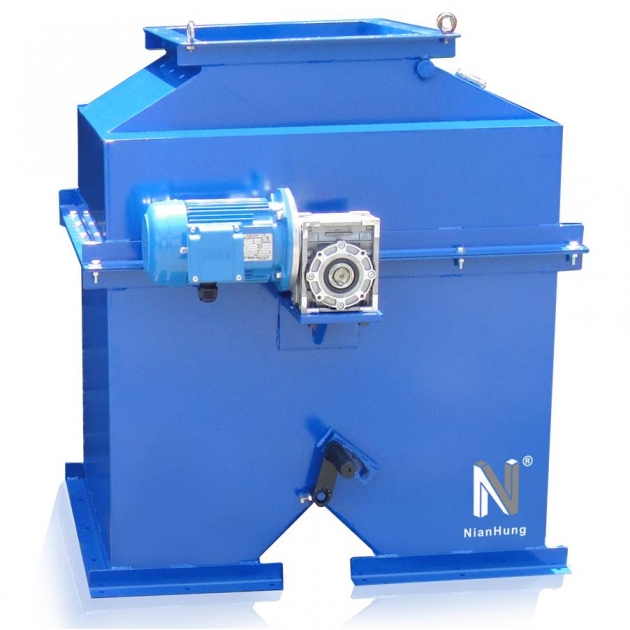

Vertical Magnetic Separator
Description：
Vertical Magnetic Separator is used for separating iron filings from various dry materials such as food, feed, ABS, PET, PP.
Features
1. Only motor power is required
2. Tough durable design is suitable for outdoor use.
Specification
1. Highest magnetic force can reach 8,000 Gauss.
2. Customization of machine such as dimensions, models or specifications to meet the needs of customer.
VNH 系列 Series
| Model | Magnetic Force (GAUSS) | Body Dimensions (mm) | Outer Diameter Φ (mm) |
(RPM) | Power Output (kW) |
Weight (KG) |
||||
| L | W1 | W2 | H | Belt Width | ||||||
| VNH-600 | 1000 ~ 8000 |
650 | 730 | 755 | 1100 | 600 | 400 (Variable) |
20 ~ 40 | 0.75 | 350 |
| VNH-800 | 750 | 930 | 955 | 800 | 400 | |||||
| VNH-1000 | 850 | 1130 | 1155 | 1000 | 1.5 | 480 | ||||
