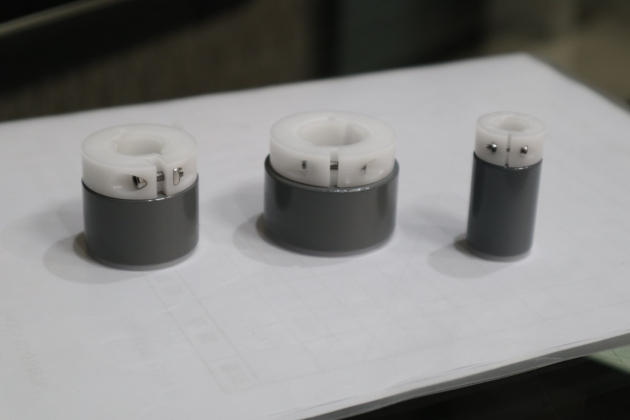

Neodymium Bonded Magnet
Non-Contact Magnetic Transmission Drives is driven by non-contact mode. Mainly used for LCD Panel, solar ,Touch Panel, Conveyor (low torque), vacuum chamber transfer mechanism.
Features
- Ultra quiet operation
- No wear, steady and smooth drive
- No maintenace required : No need to replace parts from wear problems
- Ultra-low particle generation : In the non-contact state, there is no oil stain, vibration and noise from the gear and it will not generate dust due to friction
| Type | Combined Type | Material | Surface Treatment | |||
| MQ型 MQ Type |
MQL | Perpendicular Type | ①Magnet Section | ②Holder Section | ①Magnet Section | ②Holder Section |
| MQU | Parallel Type | Neodymium Bonded Magnet | (POM) Polyacetal (D16: 5056 Aluminum Alloy) |
Electrostatic Paint | - | |
| Model | Outer Diameter ∅ D | Axial ∅ d |
Magnet Height h (mm) | No. of Poles (P) |
| MQ21 | 21 | 10 | 15 | 6 |
| 20 | ||||
| 30 | ||||
| MQ26 | 26 | 15 | 14 | 8 |
| MQ32 | 32 | 15 | 20 | 8 |
| 20 | ||||
| MQ35 | 35 | 15 | 21.5 | 8 |
| 20 | ||||
| MQ42 | 42 | 15 | 21 | 12 |
| 20 |
