Solenoids are basically electromagnets. They are made of a coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other).

Application:
vending machines, game machine, all kinds of automatic locks, security device, IC and coin operated call, etc.

Specifications:

型號 Type	電壓 Rated Voltage (V)	電流 Current (mA)	通電時間 Energize time	行程            Lead Length (mm)	推拉力             Push-pull force (N)	自重      Self Weight (g)
NH-0520B	DC 12V, 24V	300	≦30S	5	0.2-5N	22
NH-0530B	DC 12V, 24V	350	≦30S	10	0.2-6N	28
NH-0630B	DC 12V, 24V	400	≦30S	10	0.4-8N	42
NH-0730B	DC 12V, 24V	400	≦30S	10	0.3-8N	36
NH-0826B	DC 12V, 24V	450	≦30S	8	0.5-20N	67
NH-0837B	DC 12V, 24V	600	≦30S	10	1-20N	89
NH-1039B	DC 12V, 24V	700	≦30S	12	1.5-35N	112
NH-1040B	DC 12V, 24V	800	≦30S	12	2-40N	138

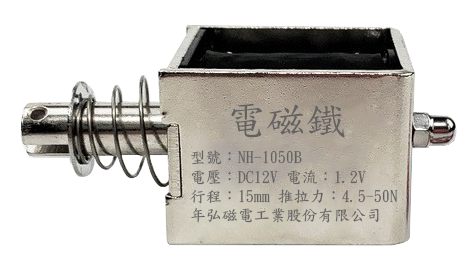

NH-1050B	DC 12V, 24V	1200	≦30S	15	4.5-50N	335
NH-1250B	DC 12V, 24V	1200	≦30S	15	4.5-50N	336
NH-1253B	DC 12V, 24V	1400	≦30S	15	3.5-45N	188
NH-1264B	DC 12V, 24V	1400	≦30S	20	3.5-65N	354
NH-1565B	DC 12V, 24V	1400	≦30S	20	3.5-65N	354

(for referrence only)
