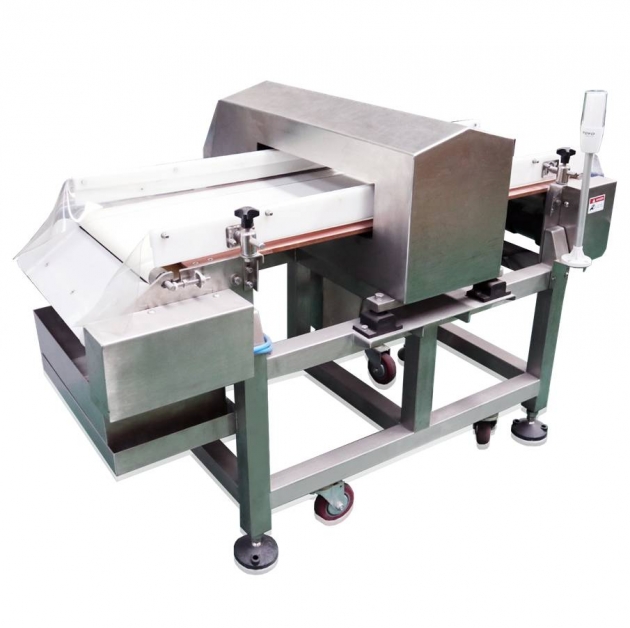

Metal Detector
Description：
-
Specially used for the detection of iron, non-ferrous metals and alloy impurities in foods and pharmaceuticals.
-
Detection of various metal fragments in chemical raw materials, rubber products, and paper products.
- It adopts the balanced principle used in metal detection equipment at Taiwan and abroad, which is stable and reliable, and has better performance.
- The positioning adjustment technology can adjust the speed in progress and effectively suppress the product effect.
- The combination of DSP and single-chip microcomputer performs data sample and data prccessing on the detection signal to improve the inspection effect.
- It can detect a variety of materials such as iron, stainless steel, copper, aluminum and other non-ferrous metals. With memory function, the ranger of detection is expanded.
- The memory function stores 20 product detection parameters.
- It is easy to adjust the sensitivity. The detection sensitivity can be achieved by stainless steel SUS Ø1.5mm and iron Fe Ø0.7mm (500mmx200mm window)
| Detection Method | Electromagnetic Induction |
| Detection Sensitivity | FeΦ 0.7mm SUSΦ1.5mm ( Channel Center) |
| Detection Width | 500 mm |
| Alarm Mode | Buzzer、Light Pipe |
| Speed | 32m/min (50Hz)、40m/min (60Hz) |
| Power Supply | AC220V/380V 50-60HZ |
| Power | 140W |
| Dimensions | 1500mm(L)x850mm(W)x1000m(H) |
| Weight | 約60Kg |
Freefall Series
| Detection Height | Detection Sensitivity |
| 80mm | FeΦ 0.50mm SUSΦ1.0mm |
| 100mm | FeΦ 0.60mm SUSΦ1.2mm |
| 120mm | FeΦ 0.65mm SUSΦ1.5mm |
| 150mm | FeΦ 0.70mm SUSΦ1.6mm |
| 200mm | FeΦ 0.80mm SUSΦ2.0mm |
Conveyor/Tunnel Series
| Detection Height | Detection Sensitivity |
| 165mm | FeΦ 1.2mm SUSΦ2.3mm |
| 195mm | FeΦ 1.5mm SUSΦ2.5mm |
